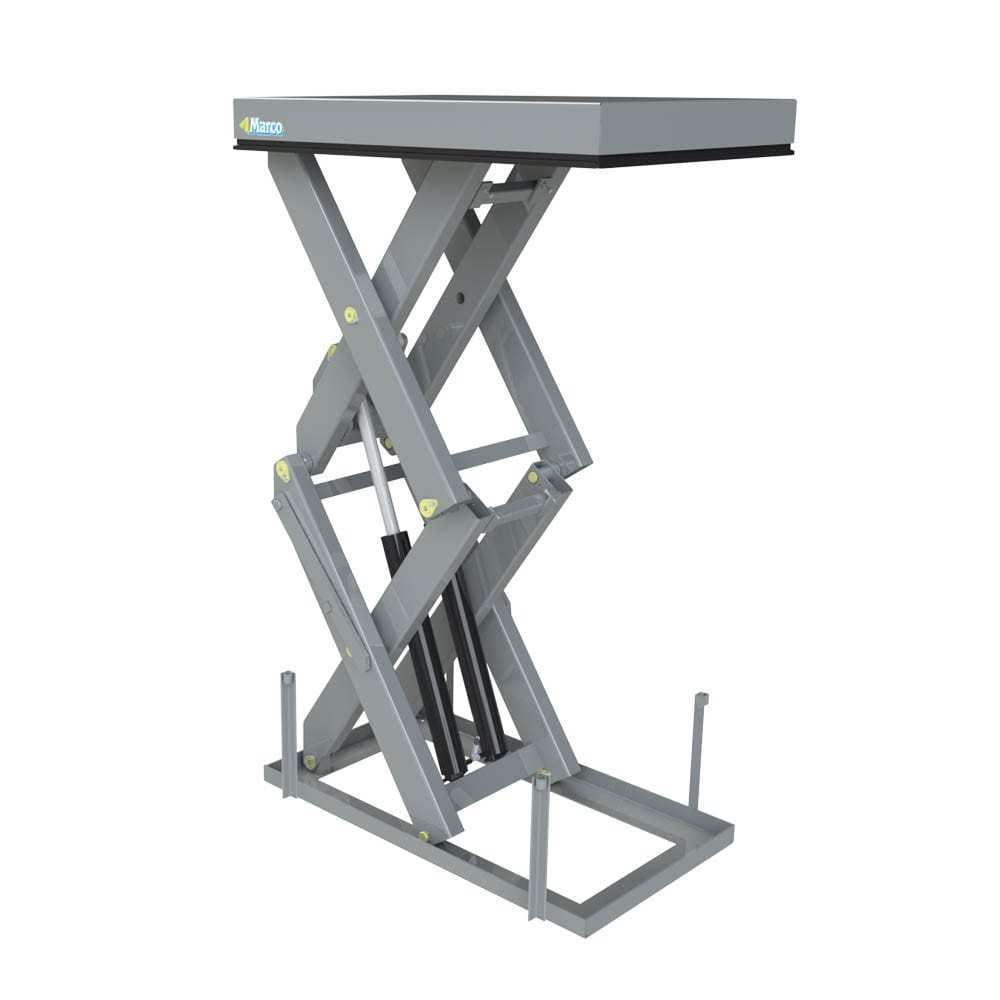

M0 004080-D1/2H

.

Product: General data

M0 004080-D1/2H

SKU: 860660 Category:
product-16623 M0 004080-D1/2H M0 004080-D1/2H https://marcolift.com/wp-content/uploads/2018/10/2_Höjdsaxbord-1-22-3.jpg 200 860660 16623 marcolift
Capacity 400
Lift Stroke 800
Platform Length 800
Platform Width 600
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 400
Lift stroke, mm 800
Height 200
Platform length 800
Platform Width 600
Lift time, (s) 19
Net weight, kg 125
Motor power 0,72
Supply voltage 3x400 AC
Frequency 50
Rated current 1,7
Control voltage 24 AC
Power pack location
Protection class IP55
Hydraulic oil ISO 32
Frame length 700
Frame width 600
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
M2 005320-D22H 500 3200 400 2250 1000 1137795 860102
M2 005180-D12H 500 1800 350 1350 1000 1137796 860105
M2 010180-D22H 1000 1800 350 1350 1000 1137797 860110
M2 015180-D2/2H 1500 1800 400 1350 1000 1137798 860111
M2 010200-D2/2H 1000 2000 350 1500 1000 1137799 860114
M2 010250-D22H 1000 2500 350 1800 1000 1137800 860115
M3 010320-D22H 1000 3200 500 2250 1000 1137801 860118
M3 020200-D2/2H 2000 2000 500 1500 1000 1137802 860120
M3 020320-D22H 2000 3200 530 2250 1000 1137804 860123
M3 020380-D2/3HB 2000 3800 800 2250 1800 1137805 860124
M3 020430-D2/2H 2000 4300 650 3000 1200 1137806 860125
M3,5 025320-D2/2H 2500 3200 530 2500 1200 1137807 860126
M4 030300-D22H 3000 3000 700 2500 1300 1137808 860130
M4 040300-D22H 4000 3000 700 2500 1500 1137809 860140
M5-040500-D2/3H 4000 3000 700 2500 1500 1137810 860141
M5-050400-D2/2H 4000 3000 700 2500 1500 1137811 860142
M6-080500-D2/2H 8000 5000 1100 4000 2500 1137812 860143
M4,5 020500-D23H 2000 5000 950 3000 2000 1137814 860145
M2 010330-D23H 1000 3300 530 1650 1200 1137816 860180
M3 020380-D23H 2000 3800 800 2250 1200 1137817 860190
