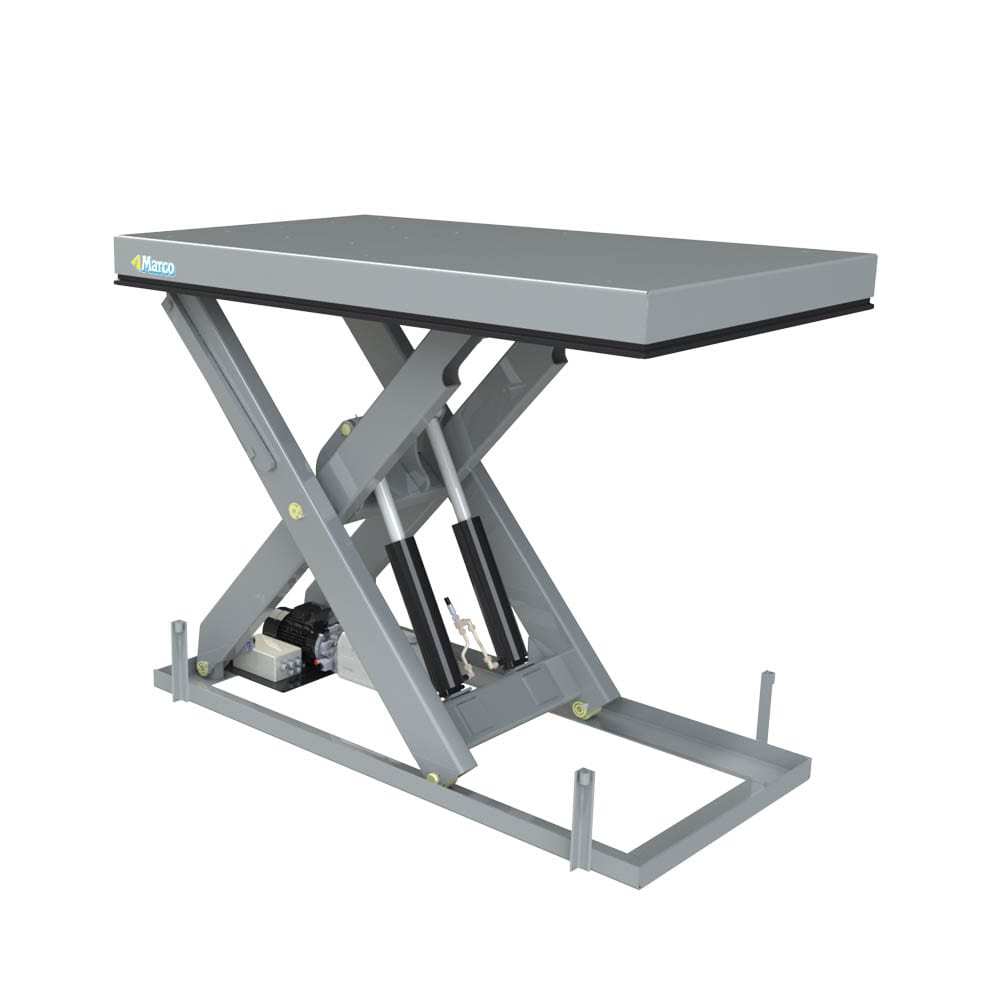

M0 005050-D1

.

Product: General data

M0 005050-D1

SKU: 860000-11 Category:
product-17711 M0 005050-D1 M0 005050-D1 https://marcolift.com/wp-content/uploads/2018/10/1_Enkelsaxbord-1-16-2.jpg 180 860000-11 17711 marcolift
Capacity 500
Lift Stroke 500
Platform Length 850
Platform Width 650
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 500
Lift stroke, mm 500
Height 180
Platform length 850
Platform Width 650
Lift time, (s) 9
Net weight, kg 150
Motor power 0,65
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 1,7
Control voltage 24 DC
Power pack location INT
Protection class IP55
Hydraulic oil ISO 32
Frame length 850
Frame width 650
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width
M4 050160-D2 5000 1600 400 2500 1200
M4 050160-D2B 5000 1600 400 2500 1500
M4 050200-D2 5000 2000 400 3000 1200
M4 060130-D2 6000 1300 400 2250 1200
M4 060160-D2 6000 1600 400 2500 1200
M5 080150-D2 8000 1500 600 3000 2000
M5 100150-D4 10000 1500 600 3000 2000
M3 030160-D2B 3000 1600 300 2250 1500
M3 040130-D2 4000 1300 300 2000 1200
M3 040090-D2 4000 900 300 1500 1200
M4 040160-D2 4000 1600 400 2500 1200
M4 040160-D2B 4000 1600 400 2500 1500
M4 040200-D2 4000 2000 400 3000 1200
M4 040200-D2B 4000 2000 400 3000 1500
M4 050130-D2 5000 1300 400 2250 1200
M1 010125-D1 1000 1250 220 1800 800
M2 010125-D2B 1000 1250 235 1800 1200
M2 010160-D2 1000 1600 235 2250 1000
M2 020125-D2 2000 1250 250 1800 800
M2 020125-D2B 2000 1250 250 1800 1200
M2,5 020125-D2 2000 1250 250 2000 1200
M2,5 020125-D2B 2000 1250 250 2000 1500
M3 020160-D2B 2000 1600 300 2250 1500
M2,5 030090-D2 3000 900 300 1350 1000
M3 030110-D2 3000 1100 300 1800 1000
M3 030130-D2 3000 1300 300 2000 1200
M1 005090-D1 500 900 180 1350 800
M2 005160-D1 500 1600 220 2250 800
M1 010055-D1 1000 550 180 1000 800
M1 010090-D1 1000 900 180 1350 800
