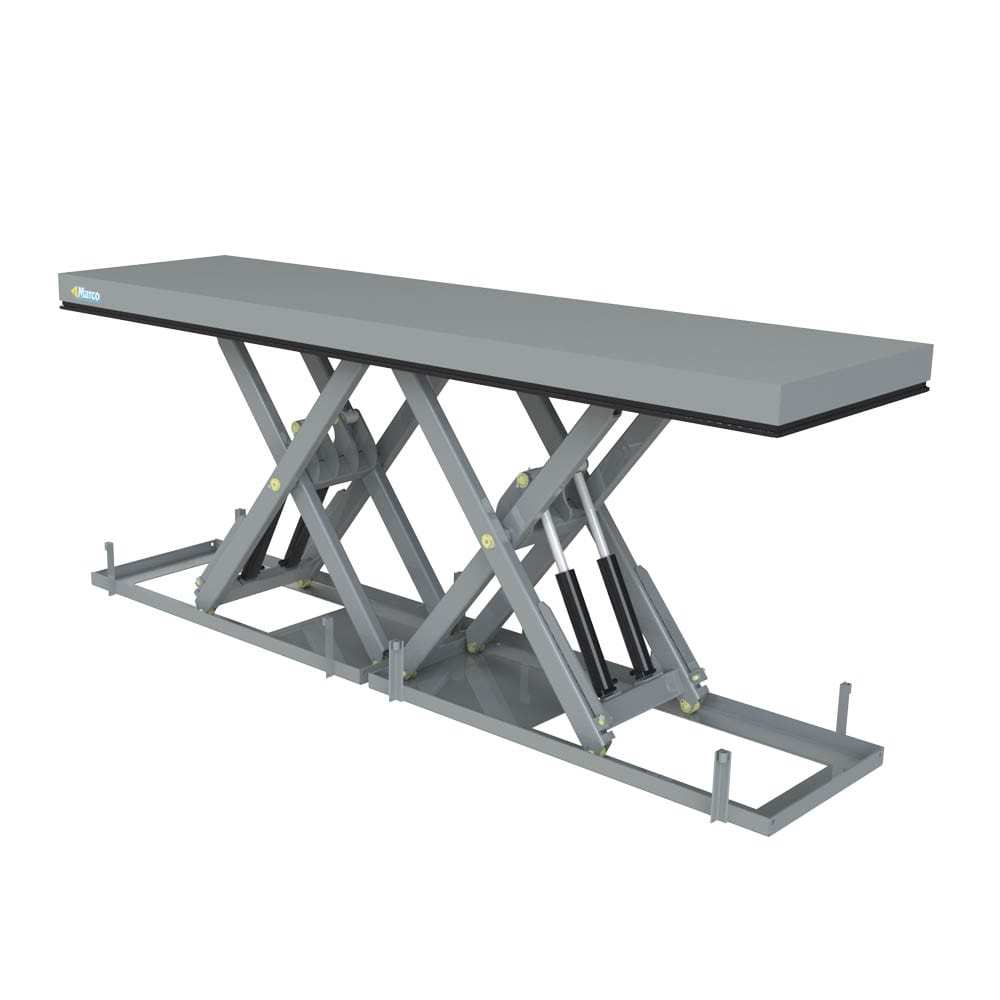

M1 010090-D2/2L

.

Product: General data

M1 010090-D2/2L

SKU: 860211 Category:
product-16059 M1 010090-D2/2L M1 010090-D2/2L https://marcolift.com/wp-content/uploads/2018/10/3_Längdsaxbord-1-1-2.jpg 230 860211 16059 marcolift
Capacity 1000
Lift Stroke 900
Platform Length 2750
Platform Width 1000
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 1000
Lift stroke, mm 900
Height 230
Platform length 2750
Platform Width 1000
Lift time, (s) 18
Net weight, kg 395
Motor power 1,43
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 3,4
Control voltage 24 DC
Power pack location
Protection class IP55
Hydraulic oil ISO 32
Frame length 2700
Frame width 790
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width
M3,5 050160-D4/2L 5000 1600 340 4550 1200
M2,5 030160-D4/2L 3000 1600 300 4550 1000
M3,5 050160-D4/2LB 5000 1600 340 4550 2000
M3,5 050200-D4/2L 5000 2000 340 6000 1500
M4 050200-D4/2LB 5000 2000 400 6050 2000
M3,5 060110-D4/2L 6000 1100 340 3650 1200
M3,5 060160-D4/2L 6000 1600 340 4550 1200
M3,5 060160-D4/2LB 6000 1600 340 4550 2000
M4 060200-D4/2L 6000 2000 400 6050 1500
M4 060200-D4/2LB 6000 2000 400 6050 2000
M4 080130-D4/2L 8000 1300 400 4550 1200
M4 080160-D4/2L 8000 1600 400 5050 1200
M4 080160-D4/2LB 8000 1600 400 5050 2000
M4 080200-D4/2L 8000 2000 400 6050 1500
M4 080200-D4/2LB 8000 2000 400 6050 2000
M2 020125-D4/2L 2000 1250 260 4000 2000
M2 020090-D4/2L 2000 900 240 2750 1000
M2 020160-D4/2L 2000 1600 300 4550 1500
M3 020200-D4/2L 2000 2000 300 6000 1500
M3 020200-D4/2LB 2000 2000 300 6000 2000
M2 030125-D4/2L 3000 1250 260 3650 1000
M3 030200-D4/2L 3000 2000 300 6000 1500
M3 030200-D4/2LB 3000 2000 300 6000 2000
M3 040110-D4/2L 4000 1100 300 3650 1000
M3 040130-D4/2L 4000 1300 340 4050 1200
M3 040160-D4/2L 4000 1600 340 4550 1200
M3 040160-D4/2LB 4000 1600 340 4550 2000
M3 040200-D4/2L 4000 2000 340 6000 1500
M3 050110-D4/2L 5000 1100 300 3650 1000
M3 050130-D4/2L 5000 1300 340 4050 1200
