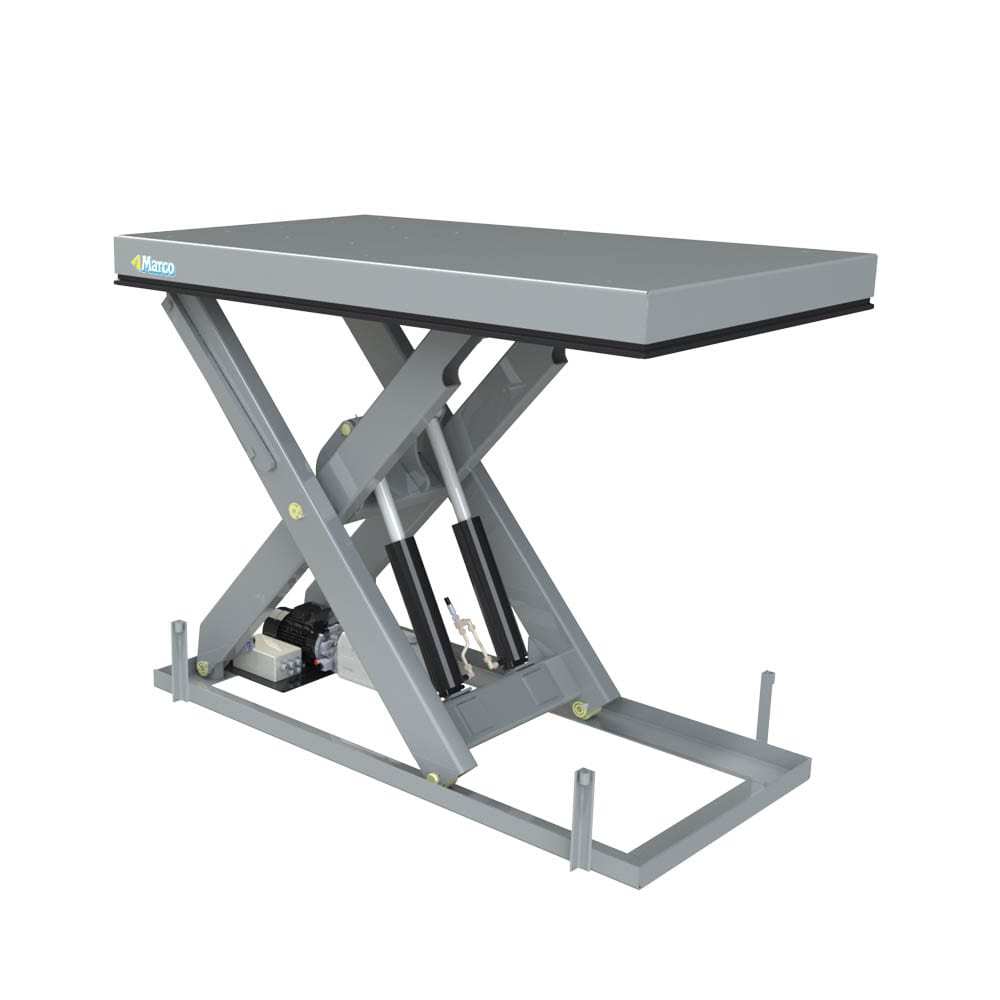

M2 020090-D2B

.

Product: General data

M2 020090-D2B

SKU: 861030 Category:
product-18162 M2 020090-D2B M2 020090-D2B https://marcolift.com/wp-content/uploads/2018/10/1_Enkelsaxbord-1-57-3.jpg 230 861030 18162 marcolift
Capacity 2000
Lift Stroke 900
Platform Length 1350
Platform Width 1000
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 2000
Lift stroke, mm 900
Height 230
Platform length 1350
Platform Width 1000
Lift time, (s) 26
Net weight, kg 185
Motor power 0,98
Supply voltage 3x400 AC
Frequency 50
Rated current 2,4
Control voltage 24 AC
Power pack location INT
Protection class IP55
Hydraulic oil ISO 32
Frame length 1350
Frame width 790
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
M1 010090-D1B 1000 900 180 1350 1000 1137937 861010
M4 050160-D2B 5000 1600 400 2500 1500 1137926 860065
M4 050200-D2B 5000 2000 400 3000 1500 1137928 860069
M4 060130-D2 6000 1300 400 2250 1200 1137929 860070
M4 060160-D2 6000 1600 400 2500 1200 1137930 860071
M5 080150-D2 8000 1500 600 3000 2000 1137931 860080
M1 005090-D1B 500 900 180 1350 1000 1137934 861001
M3 030130-D2B 3000 1300 300 2000 1500 1137910 860041
M3 030160-D2 3000 1600 300 2250 1200 1137912 860044
M3 030160-D2B 3000 1600 300 2250 1500 1137913 860045
M3 030200-D2B 3000 2000 300 3000 1500 1137915 860049
M3 040130-D2 4000 1300 300 2000 1200 1137916 860050
M3 040130-D2B 4000 1300 300 2000 1500 1137917 860051
M4 040160-D2 4000 1600 400 2500 1200 1137919 860054
M4 040160-D2B 4000 1600 400 2500 1500 1137920 860055
M4 040200-D2 4000 2000 400 3000 1200 1137921 860058
M4 050130-D2 5000 1300 400 2250 1200 1137923 860060
M4 050130-D2B 5000 1300 400 2250 1500 1137924 860061
M1 010125-D1 1000 1250 220 1800 800 1137895 860011
M2 010125-D2B 1000 1250 235 1800 1200 1137897 860012
M2 010160-D2 1000 1600 235 2250 1000 1137898 860013
M2 010160-D2B 1000 1600 300 2250 1500 1137899 860014
M2,5 020125-D2 2000 1250 250 2000 1200 1137903 860034
M3 020160-D2B 2000 1600 300 2250 1500 1137906 860037
M3 030110-D2 3000 1100 300 1800 1000 1137908 860039
M3 030130-D2 3000 1300 300 2000 1200 1137909 860040
M1 005090-D1 500 900 180 1350 800 1137883 860001
M1 005125-D1 500 1250 220 1800 800 1137886 860002
M0 005050-D1 500 500 180 850 650 1138484 860000-11
M1 010090-D1 1000 900 180 1350 800 1137892 860010
