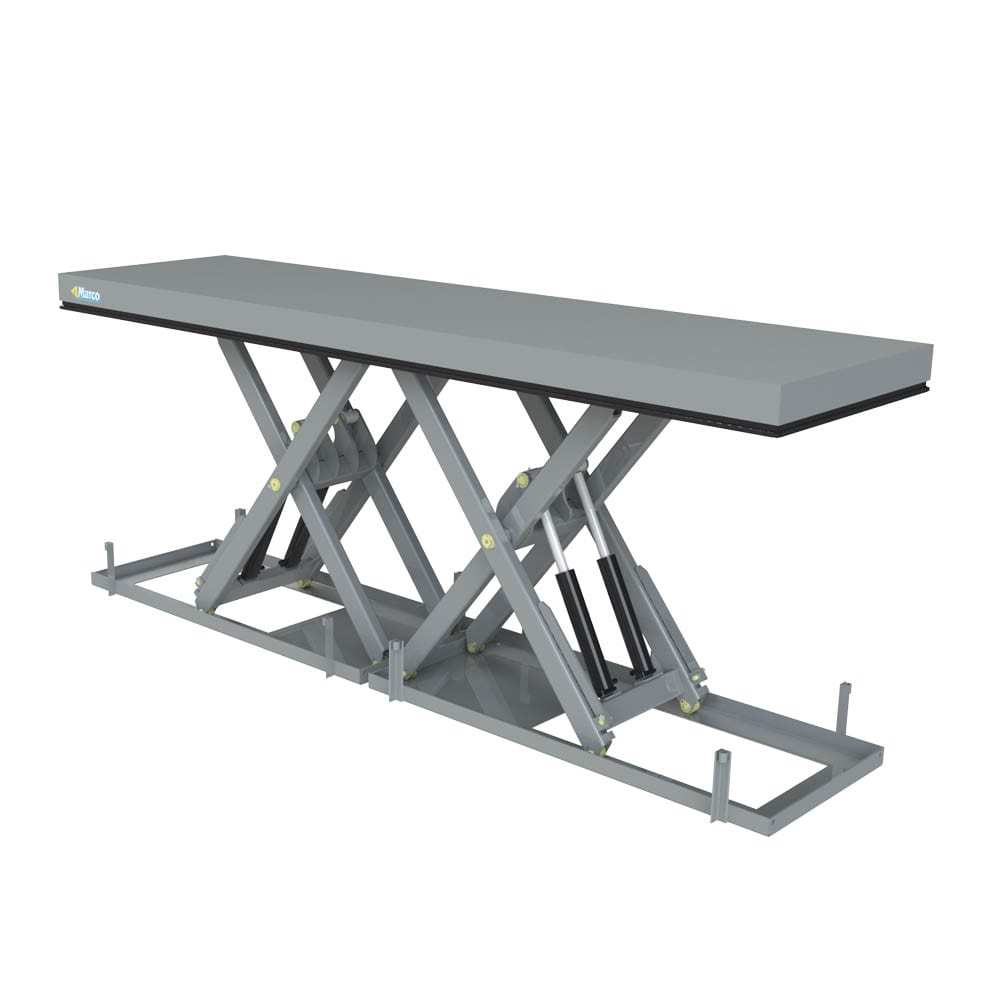

M3 020200-D4/2L

.

Product: General data

M3 020200-D4/2L

SKU: 860216 Category:
product-16083 M3 020200-D4/2L M3 020200-D4/2L https://marcolift.com/wp-content/uploads/2018/10/3_Längdsaxbord-1-5-2.jpg 300 860216 16083 marcolift
Capacity 2000
Lift Stroke 2000
Platform Length 6000
Platform Width 1500
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 2000
Lift stroke, mm 2000
Height 300
Platform length 6000
Platform Width 1500
Lift time, (s) 45
Net weight, kg 1800
Motor power 4,6
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 9
Control voltage 24 DC
Power pack location
Protection class IP55
Hydraulic oil ISO 32
Frame length 5600
Frame width 1260
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
M2,5 030160-D4/2L 3000 1600 300 4550 1000 1137973 860235
M3,5 050160-D4/2LB 5000 1600 340 4550 2000 1138104 860236
M3,5 050200-D4/2L 5000 2000 340 6000 1500 1138105 860237
M4 050200-D4/2LB 5000 2000 400 6050 2000 1138106 860238
M3,5 060110-D4/2L 6000 1100 340 3650 1200 1138107 860239
M3,5 060130-D4/2L 6000 1300 340 4050 1200 1138108 860240
M3,5 060160-D4/2L 6000 1600 340 4550 1200 1138109 860241
M3,5 060160-D4/2LB 6000 1600 340 4550 2000 1138110 860242
M4 060200-D4/2L 6000 2000 400 6050 1500 1138111 860243
M4 060200-D4/2LB 6000 2000 400 6050 2000 1138112 860244
M4 080130-D4/2L 8000 1300 400 4550 1200 1138113 860245
M4 080160-D4/2L 8000 1600 400 5050 1200 1138114 860246
M4 080160-D4/2LB 8000 1600 400 5050 2000 1138115 860247
M4 080200-D4/2L 8000 2000 400 6050 1500 1138116 860248
M4 080200-D4/2LB 8000 2000 400 6050 2000 1138117 860249
M1 010090-D2/2L 1000 900 230 2750 1000 1137951 860211
M2 020125-D4/2L 2000 1250 260 4000 2000 1137952 860212
M2 020090-D4/2L 2000 900 240 2750 1000 1137953 860213
M2 020160-D4/2L 2000 1600 300 4550 1500 1137954 860215
M2 030090-D4/2L 3000 900 240 2750 1000 1137957 860218
M2,5 030125-D4/2L 3000 1250 260 4050 1200 1137960 860221
M3 030200-D4/2L 3000 2000 300 6000 1500 1137961 860222
M3 030200-D4/2LB 3000 2000 300 6000 2000 1137962 860223
M3 040110-D4/2L 4000 1100 300 3650 1000 1137963 860224
M3 040130-D4/2L 4000 1300 340 4050 1200 1137965 860226
M3 040160-D4/2L 4000 1600 340 4550 1200 1137966 860227
M3 040160-D4/2LB 4000 1600 340 4550 2000 1137967 860228
M3 040200-D4/2L 4000 2000 340 6000 1500 1137968 860229
M3,5 040200-D4/2L 4000 2000 340 6000 2000 1137969 860231
M3 050110-D4/2L 5000 1100 300 3650 1000 1137970 860232
