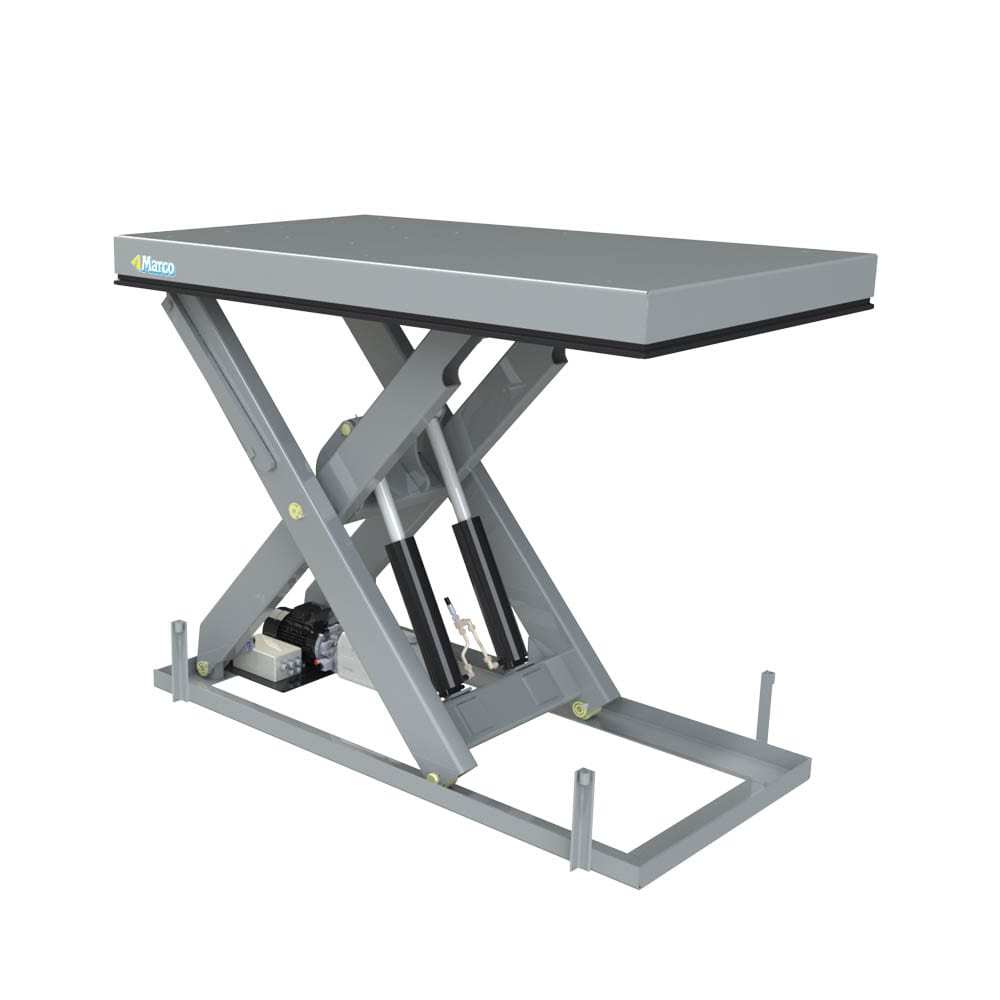

M3 030130-D2B

.

Product: General data

M3 030130-D2B

SKU: 860041 Category:
product-17887 M3 030130-D2B M3 030130-D2B https://marcolift.com/wp-content/uploads/2018/10/1_Enkelsaxbord-1-32-2.jpg 300 860041 17887 marcolift
Capacity 3000
Lift Stroke 1300
Platform Length 2000
Platform Width 1500
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 3000
Lift stroke, mm 1300
Height 300
Platform length 2000
Platform Width 1500
Lift time, (s) 27
Net weight, kg 620
Motor power 2,86
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 5,9
Control voltage 24 DC
Power pack location INT
Protection class IP55
Hydraulic oil ISO 32
Frame length 2000
Frame width 1260
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
M2 020090-D2B 2000 900 230 1350 1000 1137939 861030
M4 050160-D2B 5000 1600 400 2500 1500 1137926 860065
M4 050200-D2 5000 2000 400 3000 1200 1137927 860068
M4 050200-D2B 5000 2000 400 3000 1500 1137928 860069
M4 060130-D2 6000 1300 400 2250 1200 1137929 860070
M4 060160-D2 6000 1600 400 2500 1200 1137930 860071
M5 080150-D2 8000 1500 600 3000 2000 1137931 860080
M1 005090-D1B 500 900 180 1350 1000 1137934 861001
M3 030200-D2 3000 2000 300 3000 1200 1137914 860048
M3 030200-D2B 3000 2000 300 3000 1500 1137915 860049
M3 040130-D2 4000 1300 300 2000 1200 1137916 860050
M4 040160-D2 4000 1600 400 2500 1200 1137919 860054
M4 040160-D2B 4000 1600 400 2500 1500 1137920 860055
M4 040200-D2B 4000 2000 400 3000 1500 1137922 860059
M4 050130-D2 5000 1300 400 2250 1200 1137923 860060
M1 010125-D1 1000 1250 220 1800 800 1137895 860011
M2 010125-D2B 1000 1250 235 1800 1200 1137897 860012
M2 010160-D2 1000 1600 235 2250 1000 1137898 860013
M2 010160-D2B 1000 1600 300 2250 1500 1137899 860014
M2 020090-D2 2000 900 230 1350 800 1137900 860030
M2 020125-D2 2000 1250 250 1800 800 1137901 860031
M2 020125-D2B 2000 1250 250 1800 1200 1137902 860032
M2,5 020125-D2B 2000 1250 250 2000 1500 1137904 860035
M3 020160-D2 2000 1600 300 2250 1200 1137905 860036
M2,5 030090-D2 3000 900 300 1350 1000 1137907 860038
M3 030110-D2 3000 1100 300 1800 1000 1137908 860039
M1 005090-D1 500 900 180 1350 800 1137883 860001
M1 005125-D1 500 1250 220 1800 800 1137886 860002
M1 010055-D1 1000 550 180 1000 800 1137889 860004
M0 005050-D1 500 500 180 850 650 1138484 860000-11
