| Capacity | 4000 |
|---|---|
| Lift stroke, mm | 1600 |
| Height | 450 |
| Platform length | 2500 |
| Platform Width | 2000 |
| Lift time, (s) | 26 |
| Net weight, kg | 1245 |
| Motor power | 4,6 |
| Supply voltage | 400 AC 3~/N/PE |
| Frequency | 50 |
| Rated current | 9 |
| Control voltage | 24 DC |
| Power pack location | |
| Protection class | IP55 |
| Hydraulic oil | ISO 32 |
| Frame length | 2500 |
| Frame width | 1760 |
| Working temp | -20 - +50 |
.

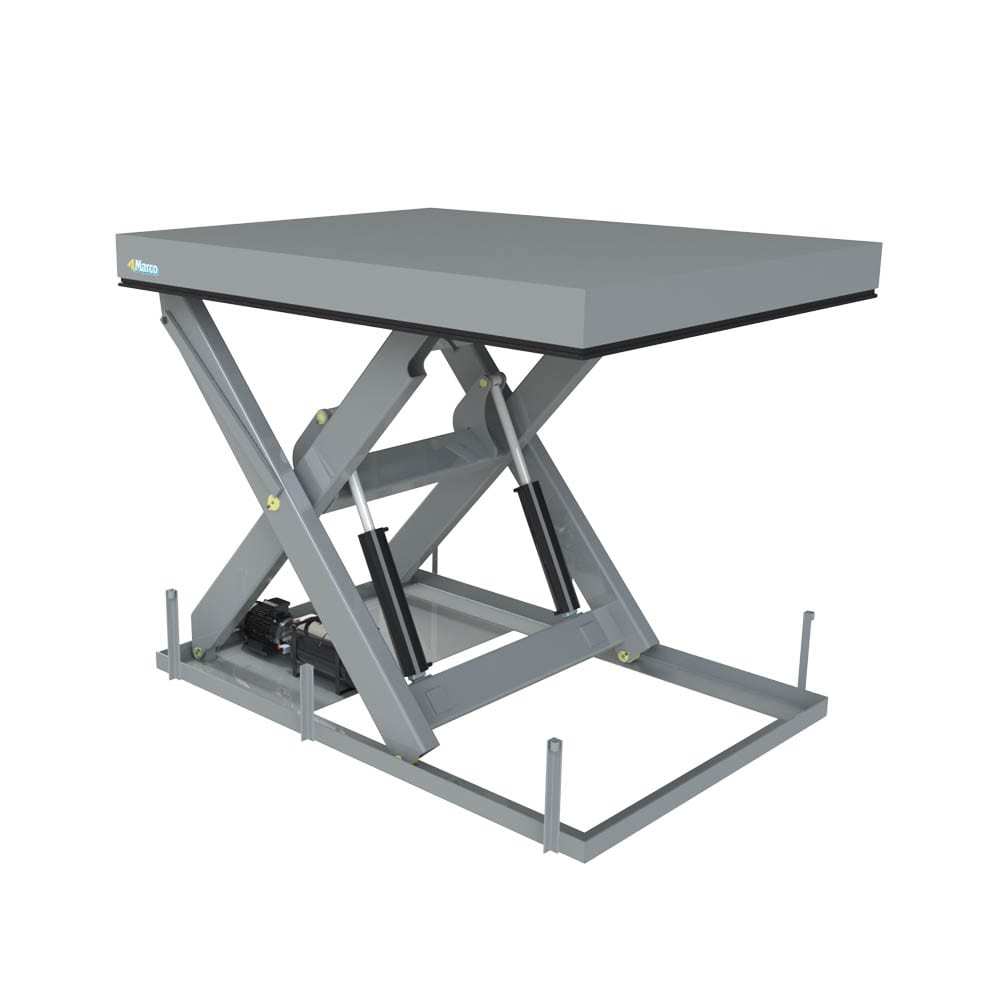

Product: General data
SKU: 860342
Category: Loading Dock Tables
Articles: Tech Spec
| Model | Capacity | Lift stroke | Closed height | Length | Width | ITEM NO. | ITEM REF. |
|---|---|---|---|---|---|---|---|
| M3 030130-D2K | 3000 | 1300 | 305 | 2000 | 1500 | 1137829 | 860329 |
| M3 030160-D2K | 3000 | 1600 | 305 | 2500 | 1500 | 1137831 | 860331 |
| M3,5 030160-D2K | 3000 | 1600 | 305 | 2500 | 2400 | 1137833 | 860333 |
| M3,5 040130-D2K | 4000 | 1300 | 305 | 2000 | 1500 | 1137836 | 860339 |
| M4 060130-D2K | 6000 | 1300 | 450 | 2250 | 1500 | 1137842 | 860347 |
| M4,5 060160-D2K | 6000 | 1600 | 450 | 2500 | 1500 | 1137844 | 860349 |
| M5 080160-D2K | 8000 | 1600 | 600 | 3000 | 2000 | 1137849 | 860363 |
| M3 020130-D2K | 2000 | 1300 | 305 | 2000 | 1500 | 1137822 | 860315 |
| M3 020160-D2K | 2000 | 1600 | 305 | 2500 | 1500 | 1137824 | 860321 |
