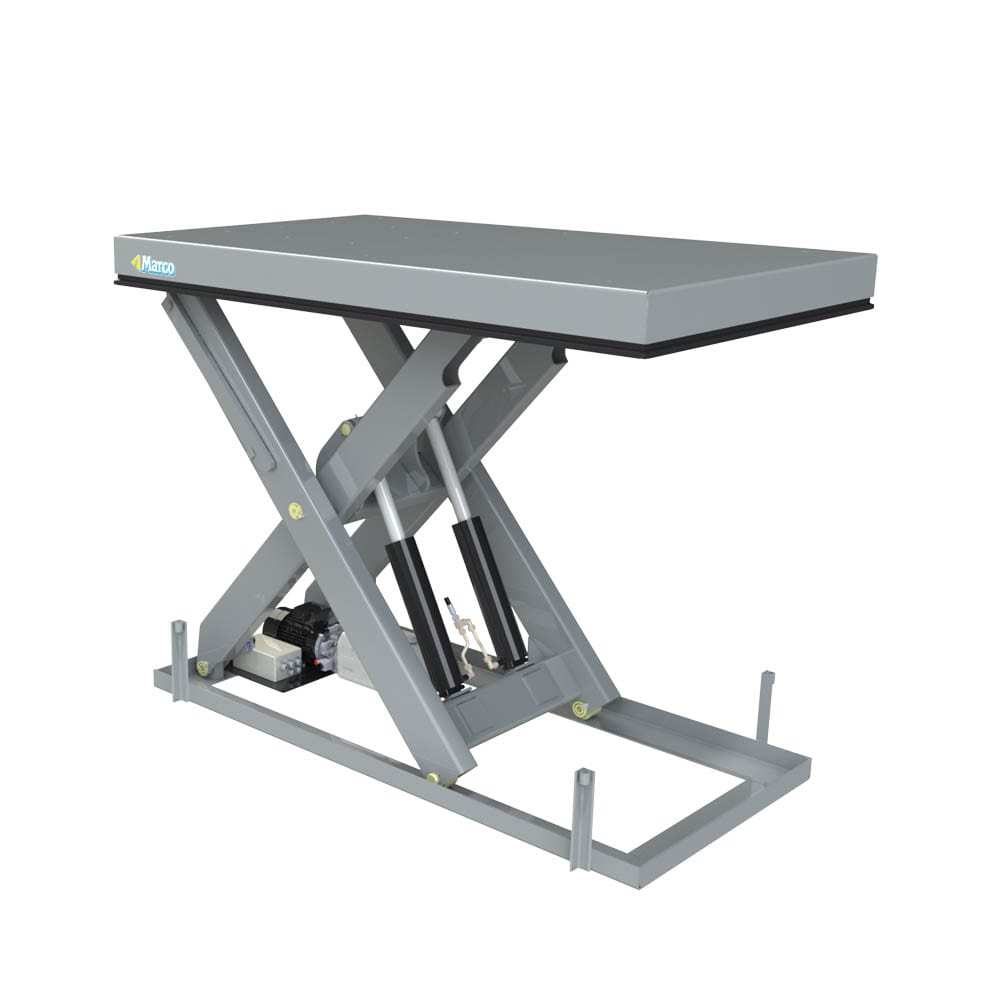

M2,5 020125-D2

.

Product: General data

M2,5 020125-D2

SKU: 860034 Category:
product-17810 M2,5 020125-D2 M2,5 020125-D2 https://marcolift.com/wp-content/uploads/2018/10/1_Enkelsaxbord-1-25-2.jpg 250 860034 17810 marcolift
Capacity 2000
Lift Stroke 1250
Platform Length 2000
Platform Width 1200
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 2000
Lift stroke, mm 1250
Height 250
Platform length 2000
Platform Width 1200
Lift time, (s) 35
Net weight, kg 426
Motor power 1,43
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 3,4
Control voltage 24 DC
Power pack location INT
Protection class IP55
Hydraulic oil ISO 32
Frame length 2000
Frame width 1090
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
M1 010090-D2B 1000 900 220 1350 1200 1137941 862010
M1 010090-D1B 1000 900 180 1350 1000 1137937 861010
M4 050160-D2 5000 1600 400 2500 1200 1137925 860064
M4 050160-D2B 5000 1600 400 2500 1500 1137926 860065
M4 060130-D2 6000 1300 400 2250 1200 1137929 860070
M5 080150-D2 8000 1500 600 3000 2000 1137931 860080
M5 100150-D4 10000 1500 600 3000 2000 1137932 860090
M3 030130-D2B 3000 1300 300 2000 1500 1137910 860041
M3 030160-D2B 3000 1600 300 2250 1500 1137913 860045
M3 030200-D2 3000 2000 300 3000 1200 1137914 860048
M3 030200-D2B 3000 2000 300 3000 1500 1137915 860049
M3 040130-D2B 4000 1300 300 2000 1500 1137917 860051
M4 040160-D2B 4000 1600 400 2500 1500 1137920 860055
M4 040200-D2 4000 2000 400 3000 1200 1137921 860058
M4 040200-D2B 4000 2000 400 3000 1500 1137922 860059
M4 050130-D2 5000 1300 400 2250 1200 1137923 860060
M2 010125-D2B 1000 1250 235 1800 1200 1137897 860012
M2 010160-D2 1000 1600 235 2250 1000 1137898 860013
M2 010160-D2B 1000 1600 300 2250 1500 1137899 860014
M2 020090-D2 2000 900 230 1350 800 1137900 860030
M2 020125-D2 2000 1250 250 1800 800 1137901 860031
M2,5 020125-D2B 2000 1250 250 2000 1500 1137904 860035
M3 020160-D2B 2000 1600 300 2250 1500 1137906 860037
M2,5 030090-D2 3000 900 300 1350 1000 1137907 860038
M3 030130-D2 3000 1300 300 2000 1200 1137909 860040
M1 005090-D1 500 900 180 1350 800 1137883 860001
M1 005125-D1 500 1250 220 1800 800 1137886 860002
M2 005160-D1 500 1600 220 2250 800 1137888 860003
M1 010055-D1 1000 550 180 1000 800 1137889 860004
M1 010090-D1 1000 900 180 1350 800 1137892 860010
