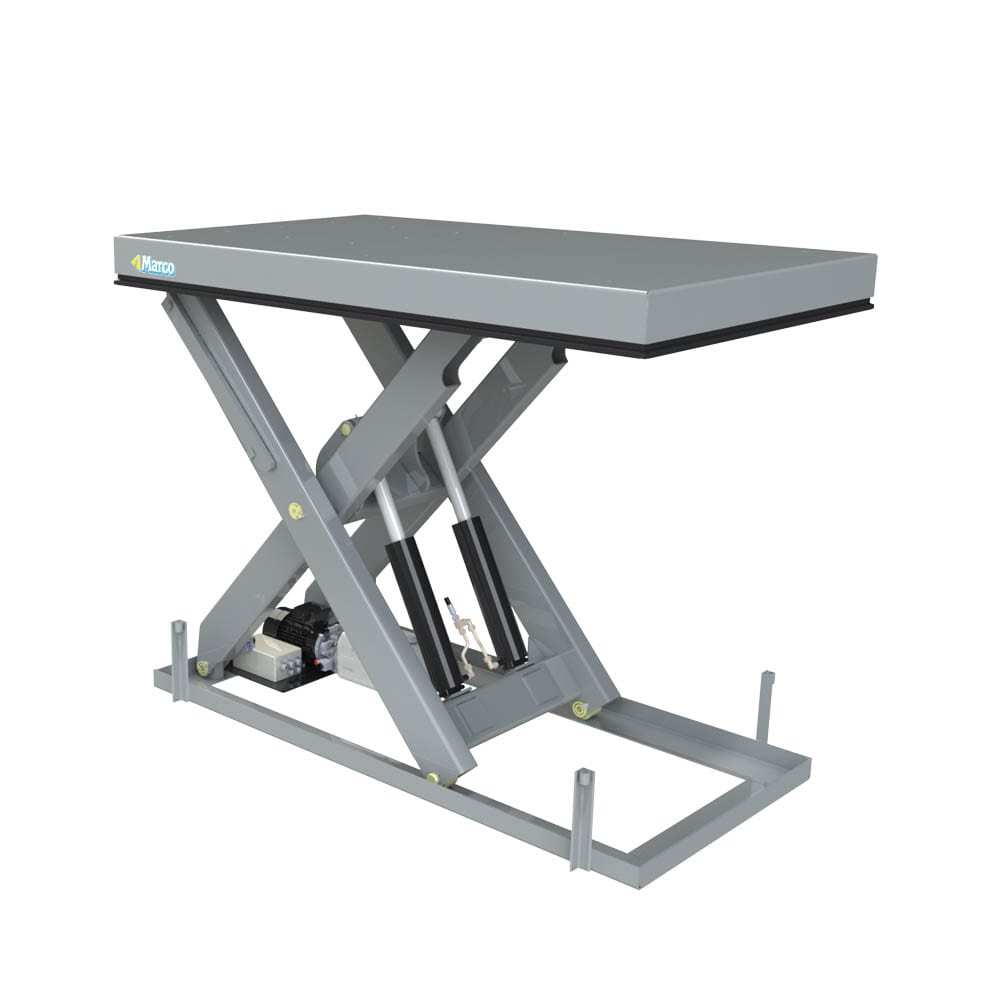

M3 030200-D2

.

Product: General data

M3 030200-D2

SKU: 860048 Category:
product-17931 M3 030200-D2 M3 030200-D2 https://marcolift.com/wp-content/uploads/2018/10/1_Enkelsaxbord-1-36-2.jpg 300 860048 17931 marcolift
Capacity 3000
Lift Stroke 2000
Platform Length 3000
Platform Width 1200
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 3000
Lift stroke, mm 2000
Height 300
Platform length 3000
Platform Width 1200
Lift time, (s) 46
Net weight, kg 720
Motor power 2,86
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 5,9
Control voltage 24 DC
Power pack location INT
Protection class IP55
Hydraulic oil ISO 32
Frame length 2800
Frame width 960
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
M2 020090-D2B 2000 900 230 1350 1000 1137939 861030
M4 050160-D2 5000 1600 400 2500 1200 1137925 860064
M4 050160-D2B 5000 1600 400 2500 1500 1137926 860065
M4 050200-D2 5000 2000 400 3000 1200 1137927 860068
M4 060160-D2 6000 1600 400 2500 1200 1137930 860071
M1 005090-D1B 500 900 180 1350 1000 1137934 861001
M3 030130-D2B 3000 1300 300 2000 1500 1137910 860041
M3 030160-D2 3000 1600 300 2250 1200 1137912 860044
M3 030160-D2B 3000 1600 300 2250 1500 1137913 860045
M3 030200-D2B 3000 2000 300 3000 1500 1137915 860049
M3 040130-D2B 4000 1300 300 2000 1500 1137917 860051
M3 040090-D2 4000 900 300 1500 1200 1137918 860052
M4 040160-D2 4000 1600 400 2500 1200 1137919 860054
M4 040160-D2B 4000 1600 400 2500 1500 1137920 860055
M4 040200-D2 4000 2000 400 3000 1200 1137921 860058
M4 040200-D2B 4000 2000 400 3000 1500 1137922 860059
M4 050130-D2 5000 1300 400 2250 1200 1137923 860060
M4 050130-D2B 5000 1300 400 2250 1500 1137924 860061
M1 010125-D1 1000 1250 220 1800 800 1137895 860011
M2 010160-D2 1000 1600 235 2250 1000 1137898 860013
M2 010160-D2B 1000 1600 300 2250 1500 1137899 860014
M2 020090-D2 2000 900 230 1350 800 1137900 860030
M2,5 020125-D2 2000 1250 250 2000 1200 1137903 860034
M2,5 020125-D2B 2000 1250 250 2000 1500 1137904 860035
M3 020160-D2B 2000 1600 300 2250 1500 1137906 860037
M2,5 030090-D2 3000 900 300 1350 1000 1137907 860038
M1 005090-D1 500 900 180 1350 800 1137883 860001
M2 005160-D1 500 1600 220 2250 800 1137888 860003
M0 005050-D1 500 500 180 850 650 1138484 860000-11
M1 010090-D1 1000 900 180 1350 800 1137892 860010
