Capacity | 3000 |
---|---|
Lift stroke, mm | 1600 |
Height | 305 |
Platform length | 2500 |
Platform Width | 2400 |
Lift time mm/s | 33 |
Net weight, kg | 1250 |
Motor power | 2,86 |
Supply voltage | 400 AC 3~/N/PE |
Frequency | 50 |
Rated current | 5,9 |
Control voltage | 24 DC |
Power pack location | |
Protection class | IP55 |
Hydraulic oil | ISO 32 |
Frame length | 2250 |
Frame width | 2160 |
Working temp | -20 - +50 |
.

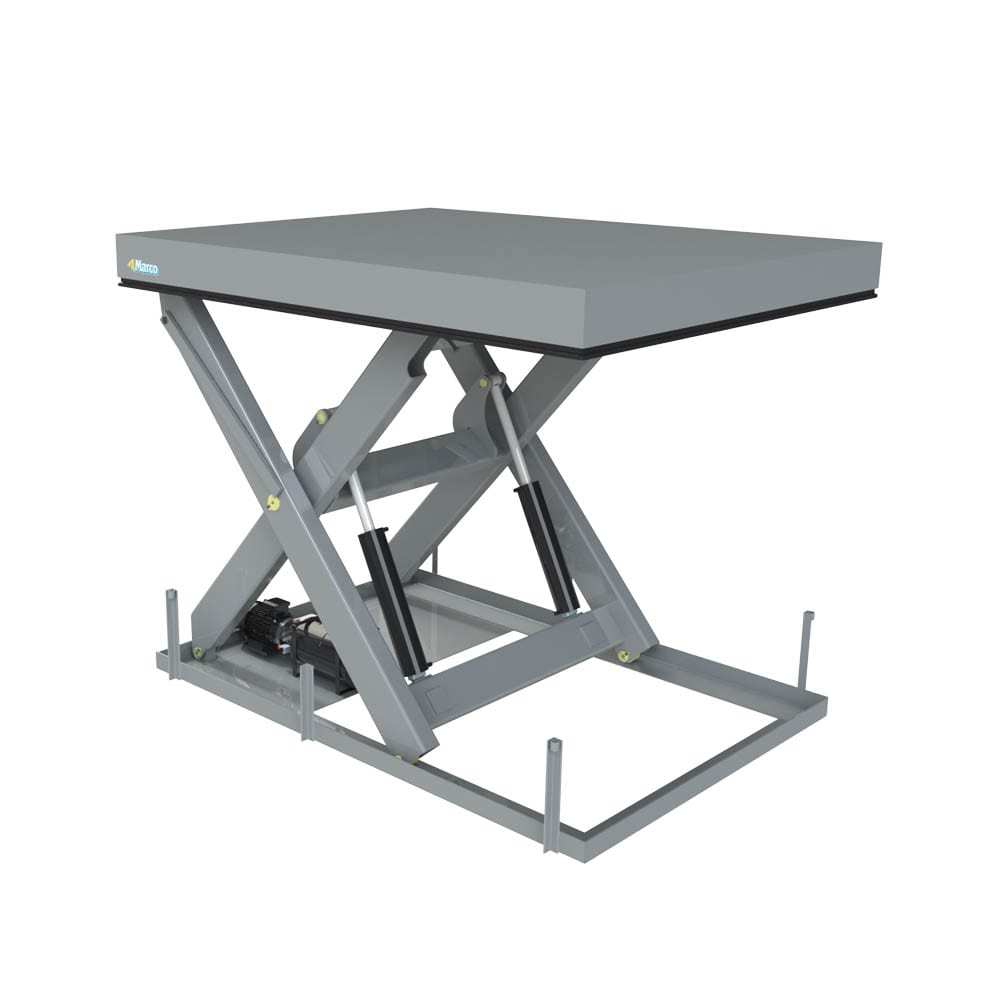

Product: General data
SKU: 860333
Category: Loading Dock Tables
Articles: Tech Spec
Model | Capacity | Lift stroke | Closed height | Length | Width | ITEM NO. | ITEM REF. |
---|---|---|---|---|---|---|---|
M3 030130-D2K | 3000 | 1300 | 305 | 2000 | 1500 | 1137829 | 860329 |
M3 030160-D2K | 3000 | 1600 | 305 | 2500 | 1500 | 1137831 | 860331 |
M3,5 040130-D2K | 4000 | 1300 | 305 | 2000 | 1500 | 1137836 | 860339 |
M4 040160-D2K | 4000 | 1600 | 450 | 2500 | 2000 | 1137838 | 860342 |
M4 060130-D2K | 6000 | 1300 | 450 | 2250 | 1500 | 1137842 | 860347 |
M4,5 060160-D2K | 6000 | 1600 | 450 | 2500 | 1500 | 1137844 | 860349 |
M5 080160-D2K | 8000 | 1600 | 600 | 3000 | 2000 | 1137849 | 860363 |
M3 020130-D2K | 2000 | 1300 | 305 | 2000 | 1500 | 1137822 | 860315 |
M3 020160-D2K | 2000 | 1600 | 305 | 2500 | 1500 | 1137824 | 860321 |
