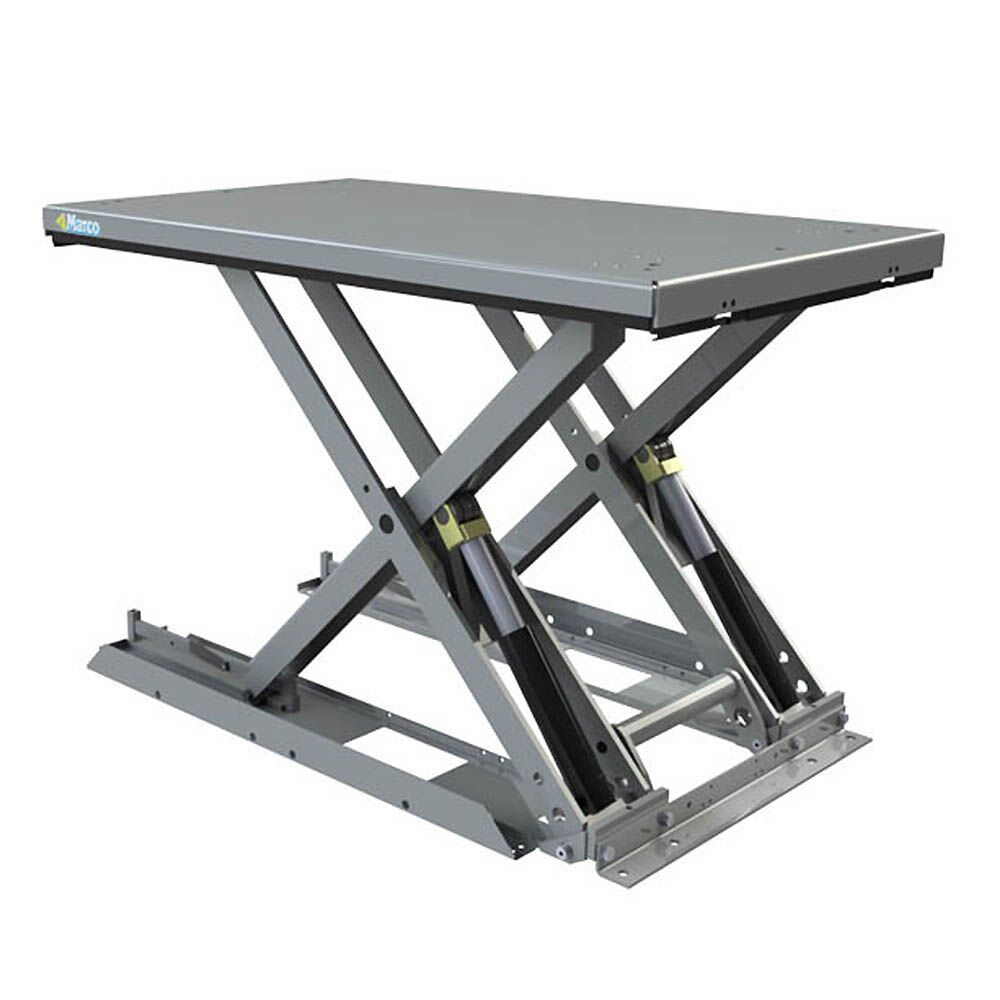

ML 010080-D2

.

Product: General data

SKU: 860600 Category:
product-16509 ML 010080-D2 ML 010080-D2 https://marcolift.com/wp-content/uploads/2020/04/5_PROD_CAT-Low-Built-Tables.jpg 80 860600 16509 marcolift
Capacity 1000
Lift Stroke 800
Platform Length 1350
Platform Width 800
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 1000
Lift stroke, mm 800
Height 80
Platform length 1350
Platform Width 800
Lift time mm/s 19
Net weight, kg 195
Motor power 0,72
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 1,7
Control voltage 24 DC
Power pack location
Protection class IP55
Hydraulic oil ISO 32
Frame length 1283
Frame width 732
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
ML 005080-D2 500 800 80 1350 600 1137867 860626
ML 008080-D2/R 800 800 80 1350 800 1137871 860630
ML 010080-D2/B 1000 800 80 1350 1050 1137857 860608
ML 020080-D2 2000 800 100 1400 800 1137858 860609
MLT 012080-D4 1200 800 90 2700 850 1137862 860616
MLT 015080-D4 1500 800 90 2700 850 1137863 860617
MLT 030080-D4 3000 800 130 2800 1100 1137864 860618
ML 020080-D2B 2000 800 100 1400 1200 1137865 860620
