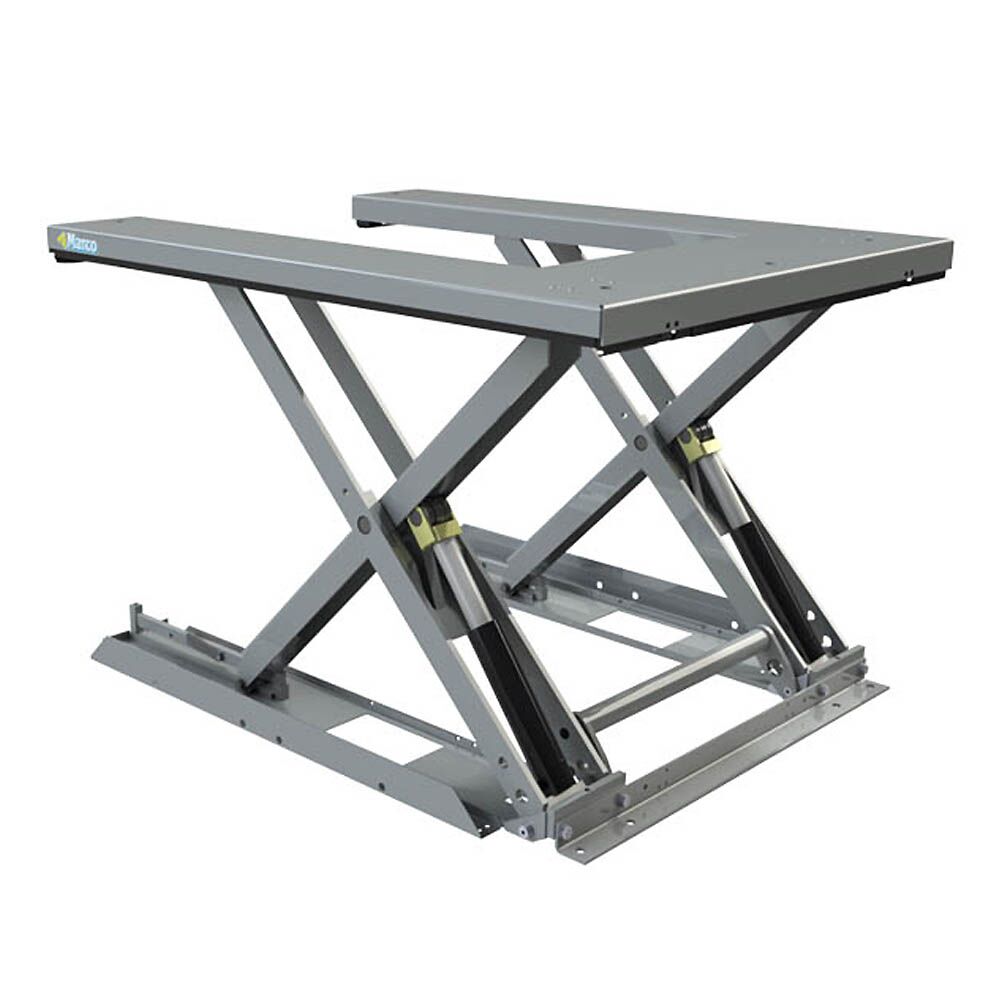

MLU 005080-D2

.

Product: General data

SKU: 860625 Category:
product-16569 MLU 005080-D2 MLU 005080-D2 https://marcolift.com/wp-content/uploads/2020/04/6_PROD_CAT-U-Shaped-Tables.jpg 80 860625 16569 marcolift
Capacity 500
Lift Stroke 800
Platform Length 1350
Platform Width 1050
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 500
Lift stroke, mm 800
Height 80
Platform length 1350
Platform Width 1050
Lift time, (s) 19
Net weight, kg 200
Motor power 0,72
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 1,7
Control voltage 24 DC
Power pack location
Protection class IP55
Hydraulic oil ISO 32
Frame length 1283
Frame width 982
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
MLU 008080-D2/R 800 800 80 1350 1050 1137870 860629
MLU 016080-D2 1600 800 85 1730 1618 1137873 860651
MLU 016080-D2B 1600 800 85 1730 1718 1137874 860652
MLU 010080-D2 1000 800 80 1350 1050 1137859 860610
MLU 020080-D2 2000 800 100 1400 1200 1137860 860611
