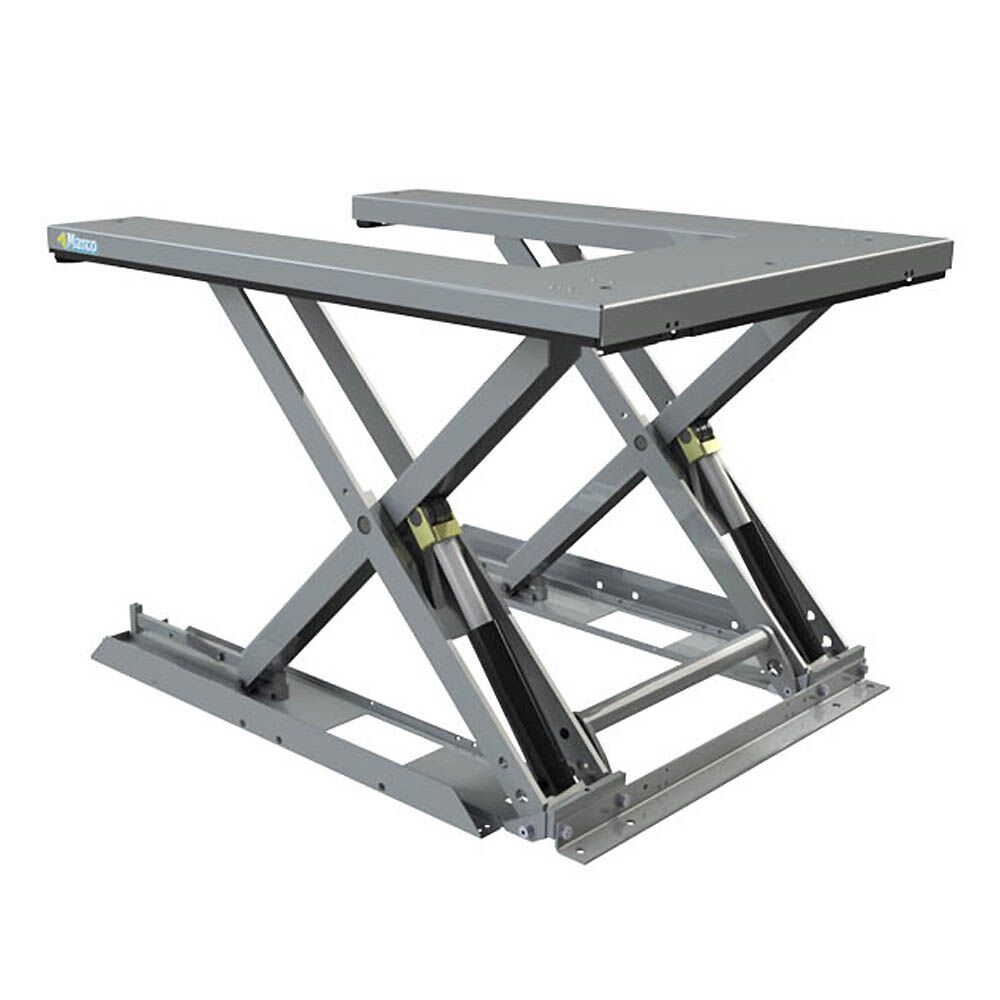

MLU 020080-D2

.

Product: General data

SKU: 860611 Category:
product-16539 MLU 020080-D2 MLU 020080-D2 https://marcolift.com/wp-content/uploads/2020/04/6_PROD_CAT-U-Shaped-Tables.jpg 100 860611 16539 marcolift
Capacity 2000
Lift Stroke 800
Platform Length 1400
Platform Width 1200
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 2000
Lift stroke, mm 800
Height 100
Platform length 1400
Platform Width 1200
Lift time, (s) 30
Net weight, kg 375
Motor power 0,72
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 1,7
Control voltage 24 DC
Power pack location
Protection class IP55
Hydraulic oil ISO 32
Frame length 1334
Frame width 1200
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
MLU 008080-D2/R 800 800 80 1350 1050 1137870 860629
MLU 016080-D2 1600 800 85 1730 1618 1137873 860651
MLU 016080-D2B 1600 800 85 1730 1718 1137874 860652
MLU 010080-D2 1000 800 80 1350 1050 1137859 860610
MLU 005080-D2 500 800 80 1350 1050 1137866 860625
