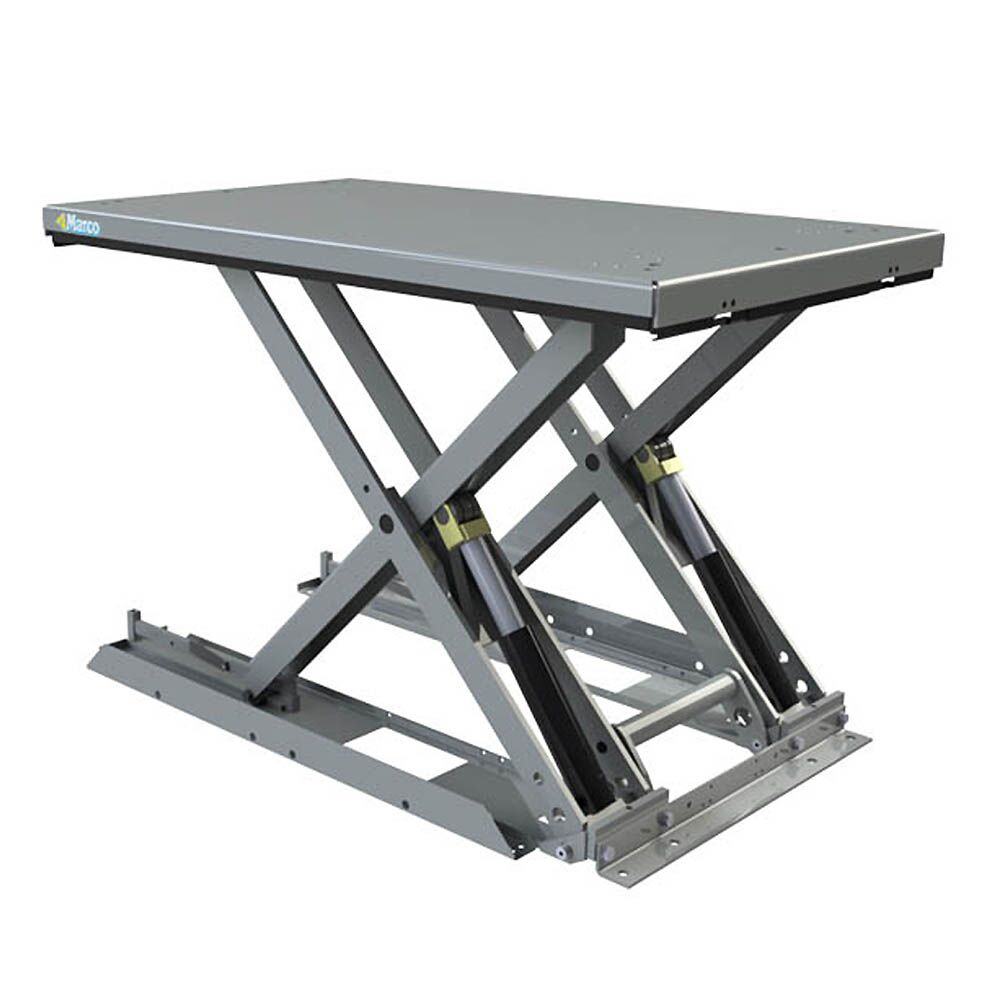

MLT 012080-D4

.

Product: General data

SKU: 860616 Category:
product-16545 MLT 012080-D4 MLT 012080-D4 https://marcolift.com/wp-content/uploads/2020/04/5_PROD_CAT-Low-Built-Tables.jpg 90 860616 16545 marcolift
Capacity 1200
Lift Stroke 800
Platform Length 2700
Platform Width 850
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity 1200
Lift stroke, mm 800
Height 90
Platform length 2700
Platform Width 850
Lift time, (s) 17
Net weight, kg 450
Motor power 1,4
Supply voltage 400 AC 3~/N/PE
Frequency 50
Rated current 3,4
Control voltage 24 DC
Power pack location
Protection class IP55
Hydraulic oil ISO 32
Frame length -
Frame width -
Working temp -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
ML 005080-D2 500 800 80 1350 600 1137867 860626
ML 008080-D2/R 800 800 80 1350 800 1137871 860630
ML 010080-D2 1000 800 80 1350 800 1137855 860600
ML 010080-D2/B 1000 800 80 1350 1050 1137857 860608
ML 020080-D2 2000 800 100 1400 800 1137858 860609
MLT 015080-D4 1500 800 90 2700 850 1137863 860617
MLT 030080-D4 3000 800 130 2800 1100 1137864 860618
ML 020080-D2B 2000 800 100 1400 1200 1137865 860620
